M16878/4|M16878/5|M16878/6|M16878/11|M16878/12|M16878/13|M16878/20|M16878/21|M16878/22|M16878/23|M16878/24|M16878/25|M16878/26|M16878/27|M16878/28
电线是适合在常温、中等温度及高温环境下使用的连接电线或设备安装电线，分别采用PTFE聚四氟乙烯挤出绝缘、PTFE聚四氟乙烯薄膜绕包绝缘或FEP聚全氟乙丙烯绝缘。
内导体可选择单股或多股铜绞线，表面采用镀银、镀镍或镀锡。
每种绝缘的电线可分为薄壁型、中等壁厚、或厚壁型，分别对应于工作电压250伏特、
600伏特和1000伏特。
【产品简介】
-------------------------------------------------------------------------------
MIL-W-16878/4-(NEMA HP-3 TYPE E?)
中等壁厚挤出型PTFE绝缘导线，600V。
MIL-W-16878/5-(NEMA HP-3 TYPE EE ) 厚壁挤出型耐高压PTFE绝缘导线，1000V。
MIL-W-16878/6-(NEMA HP-3 TYPE ET ) 薄壁挤出型轻量化PTFE绝缘导线，250V。

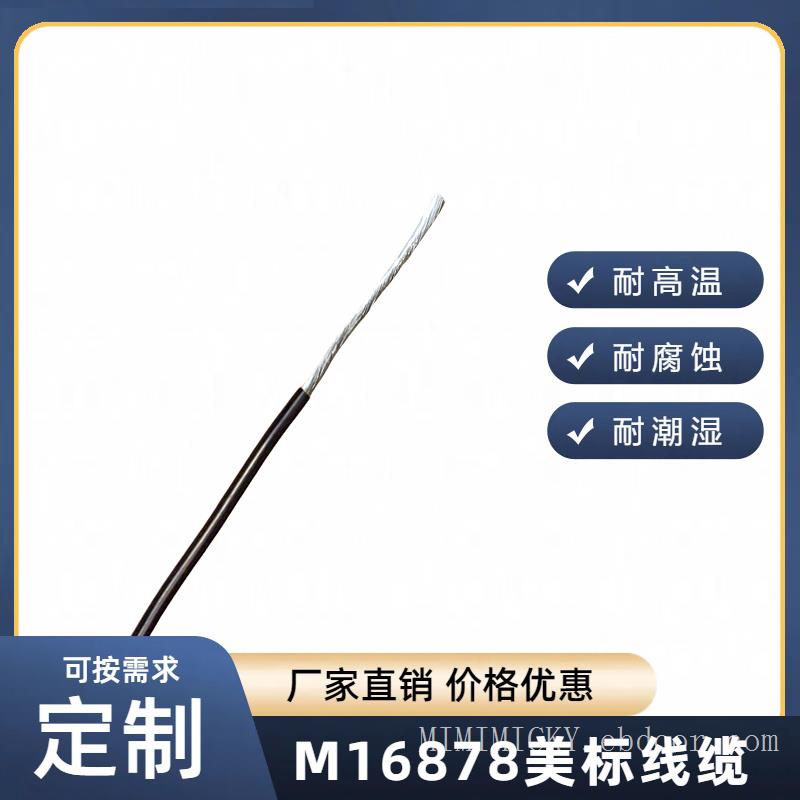

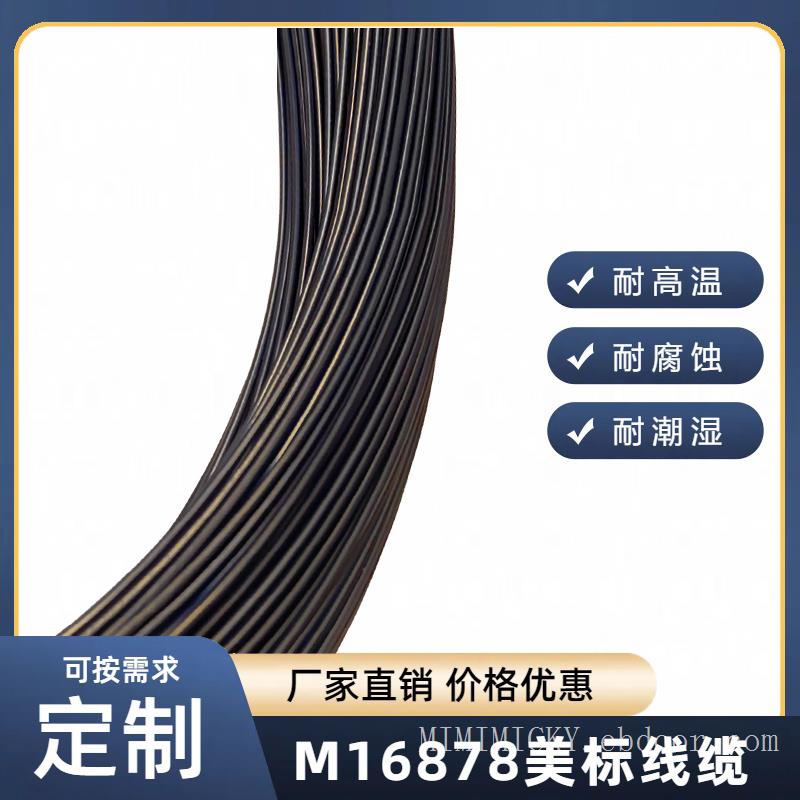

M16878是运用于高温领域的挤出型PTFE绝缘导线。采用的PTFE绝缘具有优良的耐高温，耐腐蚀，耐潮湿、耐老化，耐磨，阻燃等性能，还具有优良的热稳定性和抗化学性，抗氧化性和高可靠性。可长期运用于环境或导体温度在200℃以内的电子和电气领域，短时温度可达300℃。还可用于电流过载或机械压力大的系统中，特别适用于安装空间有限，对重量比较敏感的仪器仪表、电子设备内部。
能够有效抵抗焊接工艺中电烙铁高温对绝缘层收缩熔化的影响。
【产品特性】
-------------------------------------------------------------------------------
●击穿电压高：PTFE聚四氟乙烯绝缘材料，不受环境及频率的影响，体积电阻可达1018欧姆?厘米，介质损耗小,击穿电压高。
●耐高低温 PTFE的长期使用温度范围为-190-+260℃，不影响其绝缘特性。高温短时间可以达到300℃，具有不燃烧特性，离开火焰即自行熄灭。
●优异的耐化学性：聚四氟乙烯绝缘材料，除熔融的碱金属外，几乎不受任何化学试剂腐蚀。例如在浓硫酸、硝酸、盐酸，甚至在王水中煮沸，其重量及性能均无变化，也几乎不溶于所有的溶剂，只在300℃以上稍溶于全烷烃（约0.1g/100g）。
●优异的耐候性：聚四氟乙烯不吸潮，不燃，对氧、紫外线均极稳定，所以具有优异的耐候性。
【规格参数】可按需求定制-------------------------------------------------------------------------------
|
产品代号
|
代号
|
AWG
|
结构
|
导体直径
in.(mm）
|
最小绝缘直径
in.(mm)
|
最大绝缘直径
in.(mm)
|
最大直流电阻
ohm/km
|
|
M16878/4-32-1
|
M16878/4 BAA-X
|
32
|
1/32
|
.008 (.20)
|
.025 (.64)
|
.033 (.84)
|
554
|
|
M16878/4-30-1
|
M16878/4 BBA-X
|
30
|
1/30
|
.010 (.254)
|
.026 (.66)
|
.034 (.86)
|
348
|
|
M16878/4-28-1
|
M16878/4 BCA-X
|
28
|
1/28
|
.013 (.33)
|
.029 (.74)
|
.037 (.94)
|
223
|
|
M16878/4-26-1
|
M16878/4 BDA-X
|
26
|
1/26
|
.016 (.41)
|
.032 (.81)
|
.040 (1.02)
|
138
|
|
M16878/4-24-1
|
M16878/4 BEA-X
|
24
|
1/24
|
.020 (.51)
|
.036 (.91)
|
.044 (1.12)
|
86
|
|
M16878/4-22-1
|
M16878/4 BFA-X
|
22
|
1/22
|
.025 (.64)
|
.041 (1.04)
|
.049 (1.24)
|
55
|
|
M16878/4-20-1
|
M16878/4 BGA-X
|
20
|
1/20
|
.032 (.81)
|
.048 (1.22)
|
.056 (1.42)
|
34
|
|
M16878/4-18-1
|
M16878/4 BHA-X
|
18
|
1/18
|
.040 (1.02)
|
.056 (1.42)
|
.066 (1.68)
|
22
|
|
M16878/4-16-19
|
M16878/4 BJE-X
|
16
|
19/29
|
.053 (1.35)
|
.073 (1.85)
|
.087 (2.21)
|
15
|
|
M16878/4-14-19
|
M16878/4 BKE-X
|
14
|
19/27
|
.067 (1.70)
|
.088 (2.24)
|
.102 (2.59)
|
10
|
|
M16878/4-12-19
|
M16878/4 BLE-X
|
12
|
19/25
|
.084 (2.13)
|
.107 (2.72)
|
.121 (3.07)
|
6
|
|
M16878/4-10-19
|
M16878/4 BMG-X
|
10
|
37/26
|
.108 (2.74)
|
.127 (3.23)
|
.141 (3.58)
|
4
|
|
M16878/5-32-1
|
M16878/5 BAA-X
|
32
|
1/32
|
.008 (.20)
|
.034 (.87)
|
.042 (1.07)
|
554
|
|
M16878/5-30-1
|
M16878/5 BBA-X
|
30
|
1/30
|
.010 (.254)
|
.036 (.91)
|
.044 (1.12)
|
348
|
|
M16878/5-28-1
|
M16878/5 BCA-X
|
28
|
1/28
|
.013 (.33)
|
.039 (.99)
|
.047 (1.19)
|
223
|
|
M16878/5-26-1
|
M16878/5 BDA-X
|
26
|
1/26
|
.016 (.41)
|
.042 (1.07)
|
.050 (1.27)
|
138
|
|
M16878/5-24-1
|
M16878/5 BEA-X
|
24
|
1/24
|
.020 (.51)
|
.046 (1.17)
|
.054 (1.37)
|
86
|
|
M16878/5-22-1
|
M16878/5 BFA-X
|
22
|
1/22
|
.025 (.64)
|
.051 (1.30)
|
.060 (1.52)
|
55
|
|
M16878/5-20-1
|
M16878/5 BGA-X
|
20
|
1/20
|
.032 (.81)
|
.058 (1.47)
|
.066 (1.68)
|
34
|
|
M16878/5-18-1
|
M16878/5 BHA-X
|
18
|
1/18
|
.040 (1.02)
|
.066 (1.68)
|
.076 (1.93)
|
22
|
|
M16878/5-16-19
|
M16878/5 BJE-X
|
16
|
19/29
|
.053 (1.35)
|
.083 (2.11)
|
.095 (2.41)
|
15
|
|
M16878/5-14-19
|
M16878/5 BKE-X
|
14
|
19/27
|
.067 (1.70)
|
.098 (2.49)
|
.114 (2.90)
|
10
|
|
M16878/5-12-19
|
M16878/5 BLE-X
|
12
|
19/25
|
.084 (2.13)
|
.117 (2.97)
|
.133 (3.38)
|
6
|
|
M16878/5-10-37
|
M16878/5 BMG-X
|
10
|
37/26
|
.108 (2.74)
|
.137 (3.48)
|
.153 (3.89)
|
4
|
|
M16878/6-38-1
|
N/A
|
38
|
1/38
|
.004 (.10)
|
.012 (.31)
|
.018 (.46)
|
2125
|
|
M16878/6-36-1
|
N/A
|
36
|
1/36
|
.005 (.13)
|
.013 (.33)
|
.019 (.48)
|
1361
|
|
M16878/6-34-1
|
N/A
|
34
|
1/34
|
.006 (.15)
|
.014 (.36)
|
.020 (.51)
|
886
|
|
M16878/6-32-1
|
M16878/6 BAA-X
|
32
|
1/32
|
.008 (.20)
|
.016 (.41)
|
.022 (.56)
|
554
|
|
M16878/6-30-1
|
M16878/6 BBA-X
|
30
|
1/30
|
.010 (.254)
|
.020 (.51)
|
.024 (.61)
|
348
|
|
M16878/6-28-1
|
M16878/6 BCA-X
|
28
|
1/28
|
.013 (.33)
|
.023 (.58)
|
.027 (.69)
|
223
|
|
M16878/6-26-1
|
M16878/6 BDA-X
|
26
|
1/26
|
.016 (.41)
|
.026 (.66)
|
.030 (.76)
|
138
|
|
M16878/6-24-7
|
M16878/6 BEB-X
|
24
|
7/32
|
.024 (.61)
|
.034 (.86)
|
.038 (.97)
|
81
|
|
M16878/6-22-7
|
M16878/6 BFB-X
|
22
|
7/30
|
.030 (.76)
|
.040 (1.02)
|
.044 (1.12)
|
52
|
|
M16878/6-20-7
|
M16878/6 BGB-X
|
20
|
7/28
|
.038 (.97)
|
.048 (1.22)
|
.052 (1.32)
|
33
|
